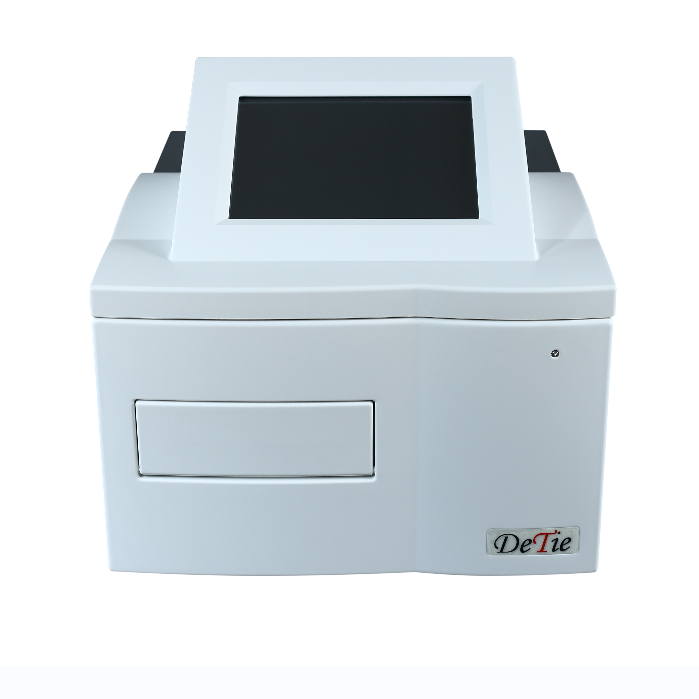

HBS-3096A Veterinary drug residue detector
8 inch color LCDdisplay,touch screen operation.
Visualization of panel and visualization of panel data.
Full closed design of optical path system and long term maintenance free.
Automatic switch door,automatic sampling test,no manual opening.
Center location,accurate data,good stability and good repeatability.
The filter wheel can carry 15 filters and replace them outside the instrument.
End point method,kinetic method,inhibition rate,single/dual wavelength measurement.
Wide voltage design and global power supply.
The veterinary drug residue detector can quickly analyze antibiotic residues, hormone residues and animal diseases in meat products. It is applicable to food and drug regulatory departments, industrial and commercial administrative departments, animal husbandry and veterinary, animal health, agriculture and forestry and other government regulatory institutions, as well as supermarkets, agricultural product markets, livestock and poultry breeding and slaughtering enterprises.
Main Parameters
Lamp:DC12V 22W Tungsten halogen lamp
Optical path:8 channel vertical light path system
Wavelength range:400-1000nm(Selection:340-1100nm)
Filter:Default configuration 405、450、492、630nm, Can be installed up to 15 filters.
Reading range:0-4.000Abs
Linear range:0-3.000Abs
Resolution: 0.001Abs
Accuracy:≤±0.01Abs
Stability:≤±0.003Abs
Repeatability:≤0.3%
Incubation function:room temperature+4℃~50℃,accuracy 37℃±0.5℃(Selection)
Vibration plate :Three kinds of linear vibration plate function, Adjustable 0-255 seconds
Display: 8 inch color LCD screen, display the entire board information, touch screen operation.
Software: Professional software, Can store 200 groups program, 100000 sample results,More than10 kinds of curve fitting equation.
Power input:AC100-240V 50-60Hz
Weight:11Kg
Size:433mm(L)*320mm(W)*308mm(H)
